SphereSurfaceHistogram.jl

SphereSurfaceHistogram is a package for binning 3D unit vectors. Each bin has the same size - i.e. it covers (approximately) the same (curved) area on a unit sphere.

There are currently two ways to bin values in the package. The first is SSHBinner which simply counts how often a bin has been pushed to. The other is SSHAverager which reports the average float value that has been pushed to a specific bin.

• SSHBinner
• SSHAverager
• Plotting with Makie
• Plotting without Makie
• SphereSurfaceHistogram.jl
• • Quickstart
  • Accessing the Histogram
  • Plotting

Quickstart

An empty binner with approximately 10_000 bins can be created with

julia> using SphereSurfaceHistogram
julia> binner = SSHBinner(10_000)SSHBinner with 9810 bins

Adding vectors can be done using push! or append!

julia> using SphereSurfaceHistogram
julia> binner = SSHBinner(10_000)SSHBinner with 9810 bins
julia> push!(binner, [1.0, 0.0, 0.0])
julia> append!(binner, [[0.0, 1.0, 0.0], [0.0, 0.0, 1.0]])

SSHAverager works analogously:

julia> using SphereSurfaceHistogram
julia> binner = SSHAverager(10_000)SSHAverager with 9810 bins
julia> push!(binner, [1.0, 0.0, 0.0], 1.6)
julia> append!(binner, [[0.0, 1.0, 0.0], [0.0, 0.0, 1.0]], [0.3, 0.6])

You can also push to a binner using angles of a spherical coordinate system. This follows the physics convention as mentioned on wikipedia, i.e. with $theta \in (0, pi)$ being the angle between the z axis and the vector and $phi \in (0, 2pi)$ extending counterclockwise from the x axis.

julia> using SphereSurfaceHistogram
julia> binner = SSHBinner(10_000)SSHBinner with 9810 bins
julia> push!(binner, 0.5pi, 1.7pi) # theta, phi

Accessing the Histogram

SphereSurfaceHistogram provides custom getindex methods working with angles in radians.

getindex(B::SSHBinner, theta, phi)

Plotting

SphereSurfaceHistogram includes a couple of Makie recipes. Most notably is the histogram recipe. It creates a mesh where each vertex represents a bin. Colors are then picked based on the counts in each bin.

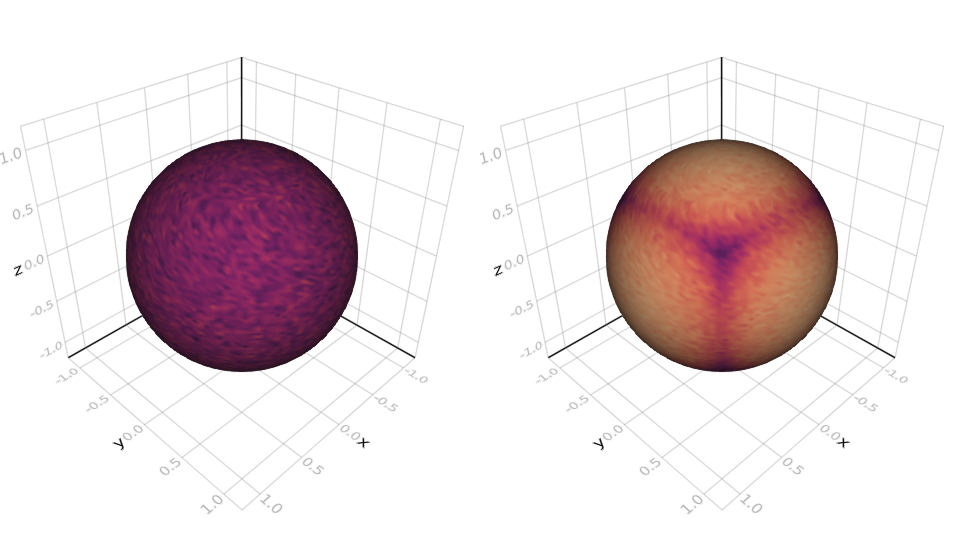

The image above uses the following code

using SphereSurfaceHistogram, GLMakie
binner1 = SSHBinner(10_000)
binner2 = SSHBinner(10_000)
for _ in 1:1000
    append!(binner1, random_unit_vector(1_000))
end
for _ in 1:1_000_000
    push!(binner2, normalize(2rand(3) .- 1.0))
end
fig = Figure()
histogram(fig[1, 1], binner1)
histogram(fig[1, 2], binner2)
fig
